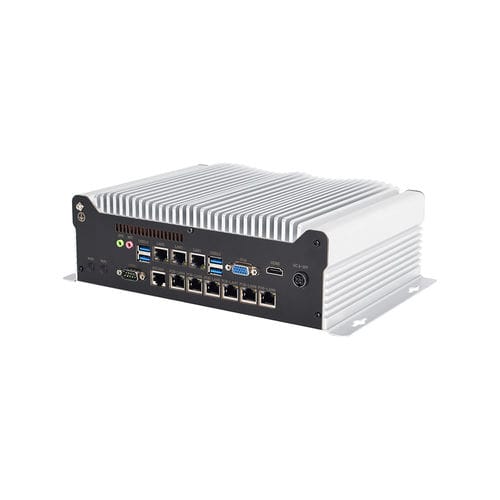

Expansion PC IBOX-601-9L2C6P

AIboxwall-mounted

The IBOX-601-9L2C6P system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited. Features Intel® UHD Graphics 770 driven by Intel® Xe architecture with up to 32 graphics execution units (EUs) delivers immersive interactions with integrated graphics and accelerated AI performance Compact Hailo-8™ AI Accelerator supports up to 26 Tera-Operations Per Second (TOPS) with best-in-class power efficiency of 3 TOPS/W 8 Independent 1.0G LAN with 8 IEEE 802.3at PoE Expansion : 1 PCIex16, 1 PCIex4, 2 PCI, 2 M.2 2280 Key M or 1 M.2 Key M+1 M.2 KeyB, 1 Mini PCIe Up to 4 Front-access SATA SSD Tray, 6 USB 3.0 Multiple 5G/WiFi 6/4G/LTE/GPRS/UMTS Supports Intel® vPro, TCC, Time-Sensitive Networking (TSN), and TPM 2.0 DC 9V to 36V Power Input, Optional Software Ignition Control Modular parts design with strong scalability for bettervibration resistance Overview IBOX-601-9L2C6P:6th/7th/8th/9th Generation Intel® Core™ and Celeron® CPUs. discrete dual graphics with VGA and DP connectors. 2 DDR4 SO-DIMM slots supporting up to 32 GB. 9 LAN ports. 8 USB3.0, 3 USB2.0, 1 built-in USB2.0 connector, 1 M.2, 1 SATA3.0 memory. Two RS485/RS232 (optional) series ports. One GPIO with optional remote control supporting 9v to 36v. Rugged, fanless, wall-mountable design.
