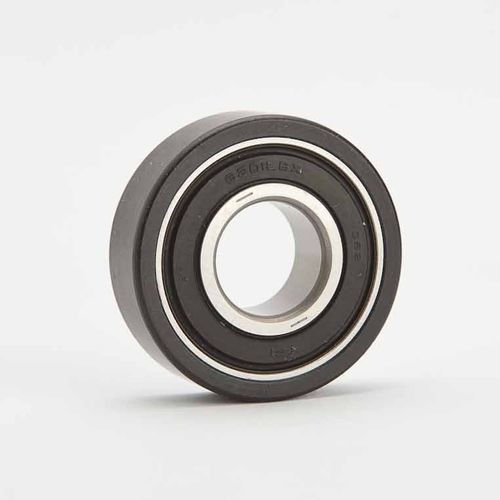

Insulated bearing
ball bearingradialdeep groove

insulated bearing
insulated bearing
insulated bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball bearing
Configuration
radial, deep groove
Material
plastic, ceramic, polymer, resin
Applications
for motors, automotive, for vehicles
Other characteristics
corrosion-resistant, electrically isolated, insulated
Inside diameter

Min.: 3 mm
(0.12 in)

Max.: 25 mm
(0.98 in)

Outside diameter

Min.: 8 mm
(0.31 in)

Max.: 52 mm
(2.05 in)

Width

Min.: 4 mm
(0.157 in)

Max.: 15 mm
(0.591 in)

Description

Insulated bearing with a layer of PPS insulating resin material coating on the width and the outer ring has the characteristics such as anti-corrosion, high reliability, cost-effective and can mainly be applied to PWM controlled motor. Recently, in response to the demand for energy saving and efficiency, the demand for inverter motors has increased rapidly. Electrical erosion caused by external current and voltage sources such as inverters and encoders has increased accordingly. Price of TPI insulated bearing has the best advantage against ceramic ball bearings widely used in the industry currently, and the insulation test was proved to reach the level of ceramic ball bearings. TPI insulated bearings could be your reliable partner in the next generation.
