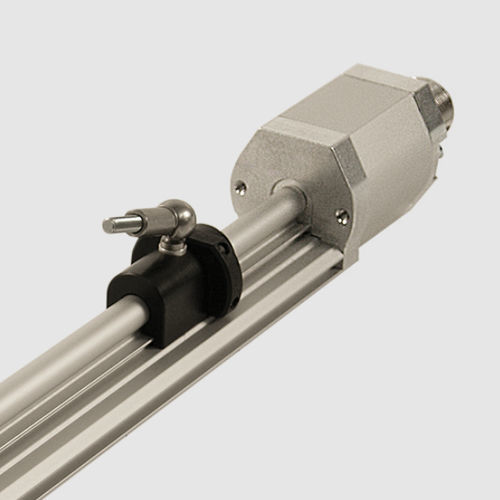

Guided linear encoder LP46 series

absolutemagnetostrictive

Linear encoder in profile housing can be mounted into machines or apparatus. One type has integrated magnet guidance capability, the others are flat without guidance. Those can be integrated flush mount into surfaces and thus have no gaps or edges where chips or shavings might stick. All systems are available with multi magnet detection. That means that position of several Magnets on a single encoder can be detected in one measurement cycle. With cascadable linear absolute encoders in profile housing, measurement ranges of up to 20 m can be detected – e.g. positioning of cutting rollers or as wear free replacement for string pods in vertical axis in storage and retrieval systems. Profiles with guided magnets Profiles carry the magnet slider. The relative position between magnet and measurement system is maintained by the guiding tracks on the profile. Advantages _ Adjustment via set-inputs _ Customer-specific solutions _ Further interfaces available _ Measures linear movements _ Profile housing _ Simple integration _ Wear-free detection Supply - Supply voltage 24 VDC ± 10 % Current consumption no load <= 100 mA Measuring principle magnetostrictive Measuring length, standard 50…4000 mm, in steps Resolution 0.001 mm Linearity deviation ± 0.10 mm 1500 mm Reproducibility 0.005 mm Hysteresis 0.02 mm 1500 mm Characteristics - Validity using original TR Magnets Temperature coefficient < 40 ppm/°C FS - FS: Full-Scale Straight line velocity no restrictions Mounting position no restrictions Material - Measuring body Aluminium extruded profile Magnet Slider other on request Analog - Interface - Voltage/Current Factory setting
