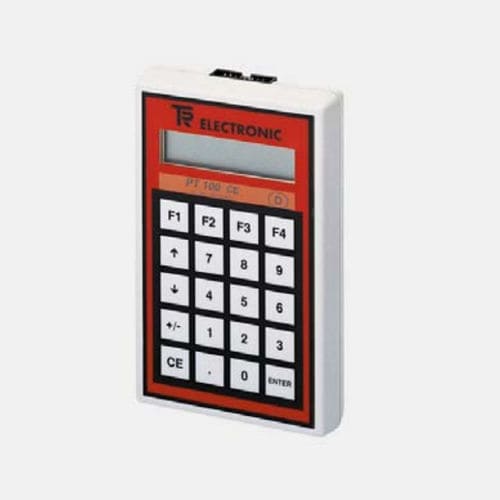

Terminal with keyboard PT-100-N

wall-mountLCDwireless

TR-Electronic's range of accessories for linear encoders includes electrical and mechanical products for every requirement: From SSI parallel converters for the transfer of absolute position and cam information from SSi into parallel output signals via double terminations for linear absolute position measuring systems in aluminium profile housings to data light barriers for field bus transmission over up to 200 meters. Naturally all accessories offer the same precision, quality and durability as all of our linear encoders – precisely what you would expect from TR-Electronic. General characteristic data Operating voltage......................................................11-27 V DC Programming interface..............................................RS485 (2-wire), 4800 baud Pin configuration (15-pole SUB-D connector) Pin 1 .............................................................RS485- Pin 2 .............................................................RS485+ Pin 14 ...........................................................US, 11-27 V DC Pin 15 ...........................................................0V, GND Functions Read and indicate, modify device data Transmit adjusted parameters to device Data comparison device PT-100-N Indicate actual position of encoder, adjust actual position of encoder Read device equipment Language choice Service functions Dimensions (BxDxH).................................................91,5 mm x 146 mm x 28,5 mm
