DC motor encoTRive series
electronically commutated24 Vrobust

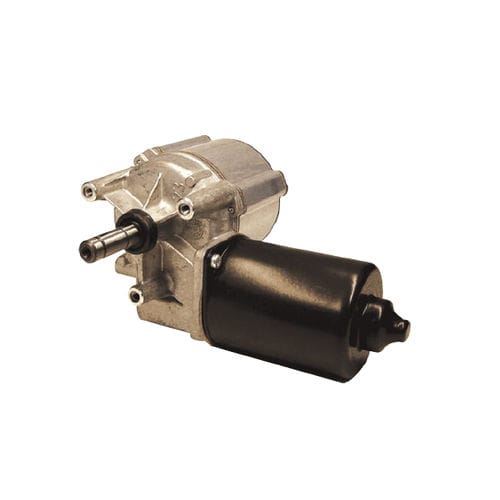

DC motor - encoTRive series - TR-Electronic GmbH - electronically commutated / 24 V / robust

DC motor - encoTRive series - TR-Electronic GmbH - electronically commutated / 24 V / robust - image - 2

DC motor - encoTRive series - TR-Electronic GmbH - electronically commutated / 24 V / robust - image - 3

Add to favorites

Compare this product

Go to the TR-Electronic GmbH website for more information

Characteristics

AC/DC: DC
Type: electronically commutated
Voltage: 24 V
Protection class: robust
Configuration: compact
Other characteristics: worm gear, motion control
Power: 27 W, 39 W
(0.037 hp, 0.053 hp)
Torque: 2 Nm, 4 Nm
(1.4751 ft.lb, 2.9502 ft.lb)
Rotational speed: 54 rpm, 187 rpm
(339.29 rad.min-1, 1,174.96 rad.min-1)

Description

Robust auxiliary drives for simple adjustment tasks encoTRive MA compact drives are ideal for use as actuators or auxiliary drives for adjusting formats, guide rails, stops, valves, butterfly valves and gate valves. The encoTRive MA 025 is the optimal drive for occasional adjustment tasks, for instance as an actuator for automating previously manual setting tasks and as an auxiliary drive for peripheral functions without any special requirements on dynamics, running time or lifetime. The encoTRive MA 120 is perfectly suited for short adjustment tasks with high torque and low speed or as a small actuator for direct mounting via hollow shaft. Its cast aluminium housing makes it particularly torsion-resistant.
