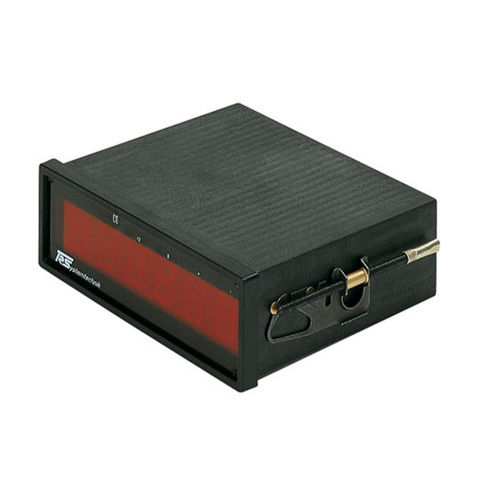

Profibus indicator PBD-10

processheightfieldbus

Important process data in view at all times Fieldbus displays from TRsystems are the simple alternative where an HMI controller or even an industrial PC is not require for a value display. The fieldbus displays are installed in a standard recess in the front in accordance with DIN 43700 and have 6 digits and preceding signs. The high-contrast displays with 7-segment LED display modules can be easily read even from 10 meters away. The modules are easily fixed from behind by means of fixing hooks fitted at the sides. In this way you can keep important process data under constant control. PBD-10 Profibus Digit height:20 mm Front size:144 mm x 48 mm PBD-20 Profibus Digit height:14 mm Front size:69 mm x 24 mm Options:Protection class IP64 (front side)
