Horizontal lifeline travrail

fall-arrest

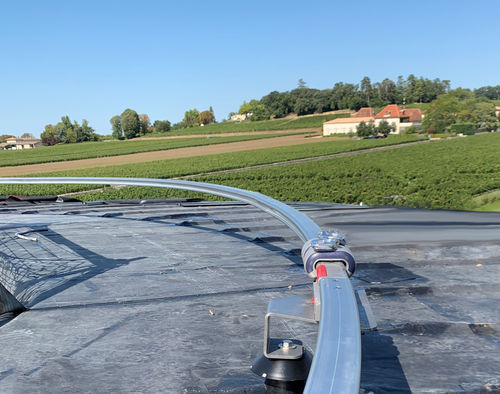

travrail is a horizontal lifeline on a stiff rail. It allows the slider to move freely over intermediate anchors, allowing the user to switch easily from one side to the other of the rail. Whether it is cleaning or maintenance operations, checking an installation or accessing to any work position, travrail will offer the following advantages: Wall, floor and overhead installations Multi users certified (up to 3 users with 100 kg each) Removable end stop for the insertion and retrieval of the slider(s) Maximum span: 6 meters Possibility to work in suspension (rope access) Made in aluminium with a natural anodisation TECHNICAL FEATURES ■ Multi user certified: up to 3 users of 100 kg ■ Maximum span: 6 meters, independently of numbers of users ■ Rail available in aluminium ■ Installation in several positions: on wall, overhead and on the floor ■ Intermediate anchors are made in steel, suitable for fixation on either concrete or metallic layer ■ A special bracket version allows a longitudinal movement of the rail, to absorb thermal expansion ■ Possibility to work in suspension (rope access) with brackets every 3 m and 2 sliders for each user ■ Removable end stop for the insertion and retrieval of the slider(s) STANDARDS ■ EN 795:2012 Personal fall protection equipment - anchor devices ■ CEN/TS 16415:2013 Recommendations for anchor devices for use by more than one person simultaneously ■ EN 361 Full body harnesses (HT Pro, Expert or Specialties series) ■ EN 360 Retractable type fall arresters (blocfor™) ■ EN 353-2 Guided type fall arrester including a flexible anchor line (stopfor™) ■ EN 355 Energy absorbers and shock absorbing lanyards (LDA, LSA)
