Pressure calibrator Traqc-20 C21

loopleakdigital

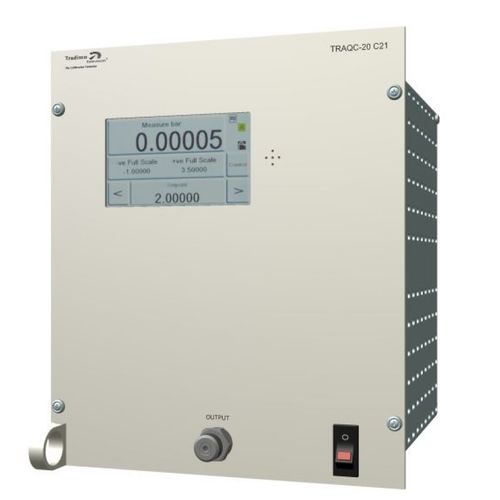

Automatic Calibrator, Traqc-20 C21 The Tradinco Traqc-20 C21 Automatic Pressure Calibrator brings together the latest control and measurement technology to offer an elegant and economical solution to pressure control for production, test and calibration. It employs full digital control to provide high control stability and high slew rate, while its digitally characterized pressure sensor offers the quality, stability, higher bandwidth and precision associated with this latest generation of piezo-resistive devices. Selection of Chassis and interchangeable control modules High speed pressure control Up to 210 bar (3000 psi/21 MPa) gauge & absolute Choice of precision up to 0.005% R +0.005% FS Control stability up to 0.001% FS Long-term stability up to 0.01% R per annum Barometric reference Switch Test Leak Test Test Program Burst Test Analogue output Volt Free Contact Accredited (RvA) calibration certificate Calibration Management Software AutoCal The Traqc-9 MAVS allows you to power your transmitters and measure the common mA or V output signals precisely. In addition to this, this instrument offers you the required functionality for loop testing. An intelligent switch test function completes it all. You only need to connect the Traqc-9 MAVS once and you’re ready to calibrate your transmitter and loop in a fast and easy way. Tradinco Instruments distributes, designs, manufactures and repairs calibration, sensing equipment and instruments for various industries. Our core values are quality, service and keeping our knowledge up to date with the latest technical innovations.
