Oil separator 2255

gas

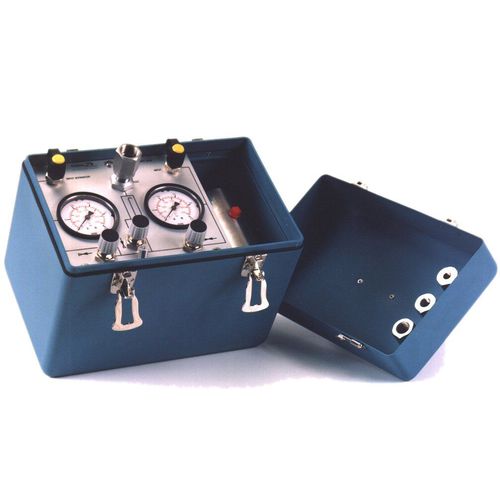

Oil Gas Separator, Tradinco 2255 The Oil/Gas Separator Unit Model 2255 is a complete unit for oil-free testing and calibration. The unit contains an Oil/Gas Separator Model 8335 and a gas pressure control unit. Due to the natural separation between oil and gas, without a separation diaphragm, the accuracy of measurement is not affected. e up to 200 barg Higher ranges upon request Including pressure indication for in and output Fine control needle valves for accurate operation Small size High pressure hose kit and couplings The Separator Unit Model 2255 is a complete unit for oilfree testing and calibration, normally in combination with a hydraulic Deadweight Tester. The unit contains an Oil/Gas Separator Model 8335 and a gas pressure control unit. The separator has no diaphragm between the oil and gas. The natural separation between the two media does not affect the accuracy of measurement. The level of separation can be checked through the monitoring glasses. Operation The gas pressure control unit of the Separator Model 2255 is connected via a hose to a high pressure gas supply and to the Separator Model 8335 which is fitted onto the test connection of, for example a hydraulic Deadweight Tester. The instrument under test is fitted onto the test connection of the gas pressure control unit, after which a pressure is generated.
