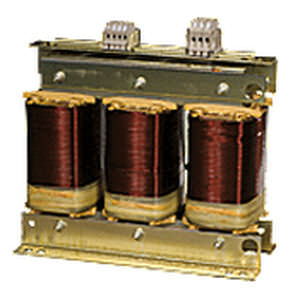

Power auto-transformer DTFSP cast resinthree-phasefloor-standing
Add to favorites
Compare this product
Characteristics
- Type
- power
- Configuration
- cast resin
- Electrical characteristics
- three-phase
- Mounting
- floor-standing
- Other characteristics
- three-winding
- Electric power
Max.: 580 kVA
(788.5803 hp)Min.: 12.5 kVA
(16.9953 hp)- Primary voltage
Max.: 1,000 V
Min.: 50 V
- Secondary voltage
Max.: 1,000 V
Min.: 50 V
- Primary current
Max.: 800 A
Min.: 63 A
Description
Three-phase autotransformers
Typical applications
Voltage adjustment
Basic equipment
Insulation class F
Ambient temperature –25 bis 40 °C
Connection terminal (<63 A)
Frequency 50/60 Hz
Vector group Yna0 Maximum load to neutral point: 10% of nominal current
For versions with increased climate resistance, the transformer is supplied with a specially insulated finish. The finish allows the transformer to be used in areas of high humidity.
Catalogs
Product c atalogue
68 Pages
