Communication network analyzer SITEHAWK

colorportablesimultaneous

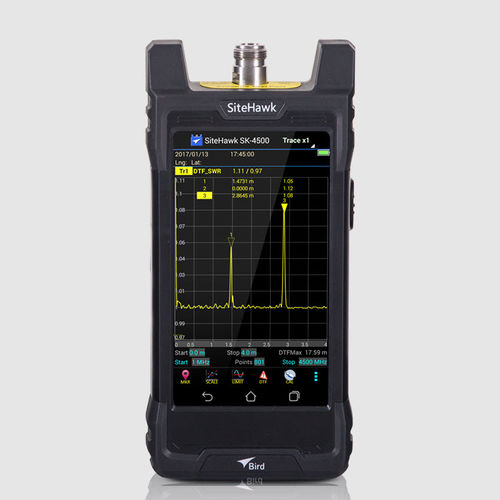

SiteHawk is the world first hand-held intelligent cable and antenna analyzer powered by Android operating system and high-resolution touch screen. It is small, lightweight and easy to carry. SiteHawk can be used for testing the matching of the cable and antenna system, accurately evaluating system performance by measuring return loss, voltage standing wave ratio, cable loss and other parameters, and measuring the RF power with the optional ThruLine power sensor. Support wider range of test frequency, i.e. 300kHz to 6000MHz, and cover most of application spectrum The world smallest and lightest (0.9kg) instrument allows one-hand operation High measurement speed, up to 1ms/point and immediate display of measurement result Maximum 1500 meters DTF Range, SiteHawk is suitable for error checking and troubleshooting of long-distance cable system Built-in battery can be constantly operating for 10 hours, and additional portable battery can be applied to further extend battery capacity High frequency resolution (1kHz), simultaneous sweeping of 3201 data points at the same time, and high frequency accuracy: 2.5×10-6 HD color LCD screen, visible in sunlight and suitable for field work Built-in 16GB memory: measurement data can be shared via the WIFI cloud or recorded in the USB flash disk
