Temperature calibrator 4610Mvoltagecurrentfrequency
Add to favorites
Compare this product
Characteristics
- Physical quantity
- temperature, voltage, current, frequency, resistance
- Applications
- for thermocouples, for electrical measuring instruments, ohmmeter
- Options
- portable, digital, laboratory, desk
- Voltage
Min.: 0 V
Max.: 1,000 V
Description

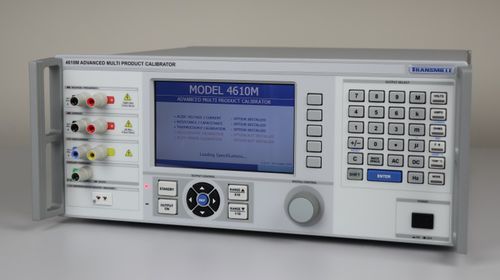

ADVANCED MULTIPRODUCT CALIBRATOR
• 0 – 1000V DC
• 1mV – 1000V AC, 10Hz to 1MHz
• Variable Resistance 0 Ohms to 1GOhms
• Variable Capacitance 1nF to 100mF
• 10Hz to 1MHz Frequency Output
The Transmille 4610M Has been especially contracted by the US Army as part of the MPC purchase program.
CONTRACTED BY THE US ARMY!
FOR DOD CLIENTS ONLY AT THIS TIME
NSN: 6625-01-690-3940
• AC & DC Voltage to 1000V
• AC & DC Current to 30A
• 2/4 wire Decade and Variable Resistance to 1G
• Decade and Variable Capacitance to 100mF
• Frequency to 1MHz
• Thermocouple Source & Measure
• GPIB (IEEE-488) & USB interface standard
• 7″ full color touch screen
