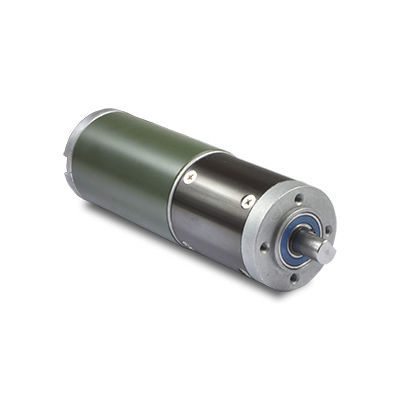

Planetary gear-motor PD52103-12-4.5-OEDCelectronically commutatedbrushed
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, electronically commutated, brushed
- Type
- planetary
- Power
- 10 W...50 W
- Voltage
- 12 V
- Torque
- 0.2 - 0.5 Nm
- Certifications
- CE
- Other characteristics
- custom, IP55
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)
Description
Brush-commutated planetary gear DC motor, direct current motor voltage of 12VDC , current 3.3A, rated speed 689rpm power 29W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
Catalogs
No catalogs are available for this product.
See all of Transmotec Sweden AB‘s catalogs
