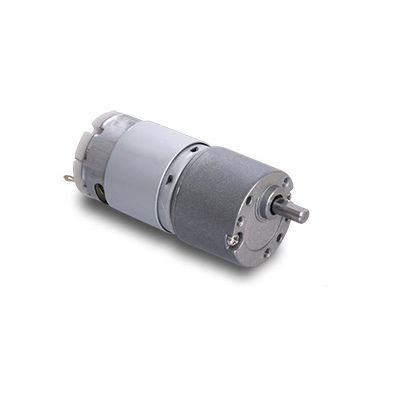

Spur gear-motor SD3039-24-200-FDCelectronically commutatedbrushed
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, electronically commutated, brushed
- Type
- spur
- Shaft orientation
- coaxial
- Power
- 0 W...10 W
- Voltage
- 24 V
- Torque
- 0.2 - 0.5 Nm
- Certifications
- CE, ISO 9001
- Other characteristics
- custom
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)
Description
Brush-commutated spur gear DC motor, direct current motor voltage of 24VDC , current 0.25A, rated speed 28.7rpm power 4W. These motors include a range of supply voltages between 2-36V and can, depending on the type, be supplied with or without gear and encoder. Existing gear types are planetary gears and spur gears. EMC filters can be obtained as capacitors or varistors. For some types, carbon brushes or metal brushes can also be selected. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
