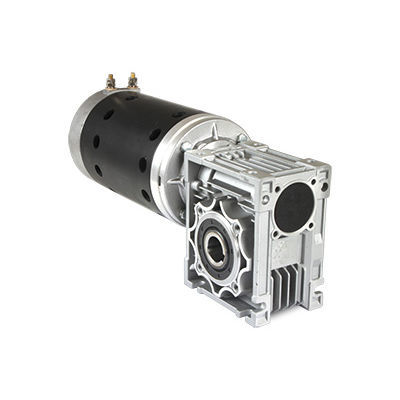

Worm gear-motor WHD123224-12-30DCelectronically commutatedbrushed
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, electronically commutated, brushed
- Type
- worm
- Shaft configuration
- hollow-shaft
- Power
- 100 W...500 W
- Voltage
- 12 V
- Torque
- 20 - 50 Nm
- Certifications
- CE
- Other characteristics
- custom
- Operating temperature
Min.: -40 °C
(-40 °F)Max.: 60 °C
(140 °F)
Description
Brush-commutated worm gear DC motor, direct current motor voltage of 12VDC , current 43A, rated speed 67rpm power 421W. These motors include a range of supply voltages between 12-24V and can, depending on the type, be supplied with or without gear, encoder and brake. All motors can be customized per request. Common customizations are shaft dimensions, cable connections and cabling.
