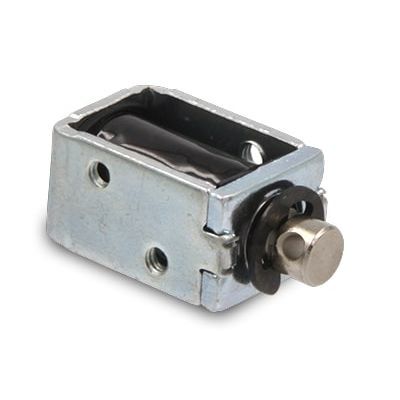

Open-frame solenoid F0415L-03Vlinearcustombistable
Add to favorites
Compare this product
Characteristics
- Type
- linear
- Other characteristics
- open-frame, custom, bistable, DC, pull, with spring return
- Voltage
3 V
- Force
0.09 N
Description
Solenoid open frame type voltage 3VDC force 0.09N stroke 3mm power 0.8W. The force can be significantly increased with limited energized time and with connection to higher supply voltage. The solenoids come with a return spring, and are available in various construction types such as open, cylindrical, self-holding latching bistable and holding magnet designs. All solenoids are available in mechanical pull L or push S designs and can be customized per request. Common customizations are mechanical as well as cable connections and cabling.
Catalogs
No catalogs are available for this product.
See all of Transmotec Sweden AB‘s catalogs
