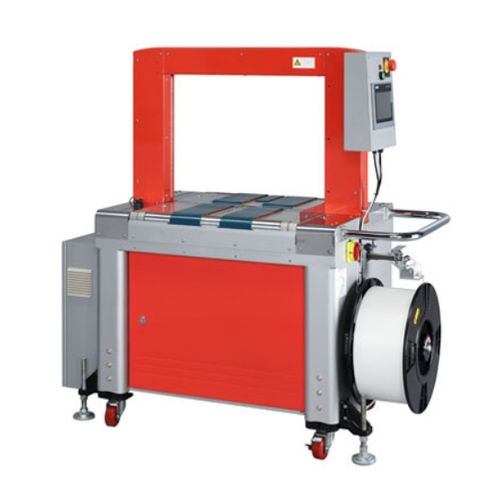

Fully-automatic strapping machine TP-702BH Mercury Transit

for packagingfor productionfor polypropylene straps

Mercury Transit TP-702BH is a fully automatic strapping machine with belt-driven table and Siemens PLC & HMI for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702BH is the fastest and most reliable strapping machine for general applications on the market today. Features • Robust & compact mechanical strapping head • Belt-driven table • Equipped with Siemens PLC and HMI as standard • Waist-high auto strap feeding • Free access to strap guides (patents registered) • Electronic tension control • Auto strap ejector • Hinged top plates • Diverse strapping patterns • Variable conveyor speed between 10 and 60 meters/minute • Up and down stream interlock with complete plug connection • Easy bundle flow direction change • Good to strap small package with minimum size 120 mm in width and 10 mm in height • Adjustable table height between 800 mm and 900 mm Options • Dual channel E-Stop • Light tower with low strap sensor • Energy saving transit with auto sleep mode • Strapping in the center of the bundle & strapping controlled with 2 photo eyes • Extension belt-driven table of 200 mm on upstream and downstream sides • Lower adjustable table height (750 mm – 900 mm) • Automatic tension control by package height detection (3 stage tension) • Automatically determining the number of straps by package length • Signal exchange via 16 pin connector • Low package bypass
