AC motor 0.06 - 18.5 kW, IP55 | TS, MY series
asynchronous400 Valuminum-frame

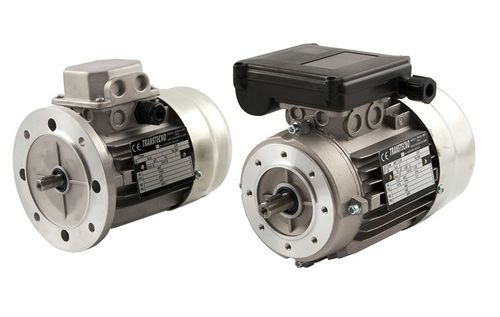

AC motor - 0.06 - 18.5 kW, IP55 | TS, MY series - Transtecno - asynchronous / 400 V / aluminum-frame
AC motor - 0.06 - 18.5 kW, IP55 | TS, MY series - Transtecno - asynchronous / 400 V / aluminum-frame
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
400 V
Configuration
aluminum-frame
Other characteristics
low-noise
Power

Min.: 0.09 kW
(0.122 hp)

Max.: 3 kW
(4.079 hp)

Description

TS and MY series motors are closed and fan cooled. TS series includes induction threephase 2-4-6-8 poles motors 230/400 Vac at 50 Hz and 275/480 Vac at 60 Hz, available in the 0.06 kW - 18.5 kW range. These motors run quietly and are dinamically well balanced; they match quality, strength and cheapness. MY series includes induction singlephase motors 230 Vac at 50 Hz, available in the 0.09 kW - 0.75 kW range; they are particular suitable to be mounted on machines for low power applications. As well as TS series motors, they match quality and cheapness. Both series are made in aluminum frame and are available with B5 or B14 flange mountings. B3 only for TS. Standard features - Class F thermal insulation - IP55 enclosure protection - PTO thermostat for overheating protection (only MY) - Low noise and vibrations - Ambient temperature: -20 °C ÷ +40 °C. - MY series motors have a large terminal box, which includes the run capacitor, in order to protect it from external environment. - Heavy and light industrial applications suitable and commercial ones.
