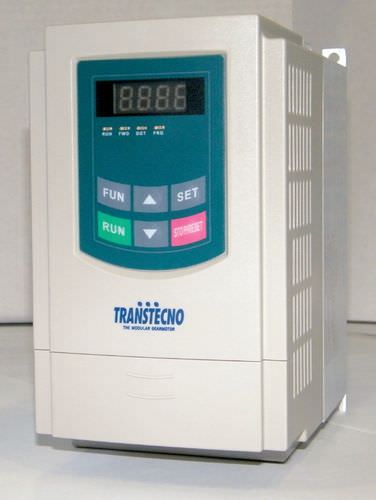

3-phase frequency inverter TT100

vertical

Over the years Transtecno Group has built Its own solutions for the mechanical and small automation industry: gearboxes, electric motors and now, variable speed drives. The newest addition, inverter TT100 allows clients to have a complete solution from one supplier. The TT100, rated output power from 0.20 to 15 kW, single phase 230Vac and three phase 400Vac covers the majority of the market needs. Characteristics - Full torque at 1.5Hz - Torque can reach 150% of rated torque - Auto torque promotion and auto slip compensation allows larger output torque at low frequency - User-defined curve, V/F curve can be adjusted - Lower-noise, carrier-wave frequency can be adjusted from 2KHz to 10KHz - Control protection is immediate and reliable, which improves system stability - Built-in filter is optional - Compatible with NPN and PNP types - Advanced V/Hz control technology ensures precise control and better performances. - Output frequency is 0.50~650.0Hz (V/F), 0.50~200.0Hz (SVC). The highest resolution is 0.01Hz
