Sorter for the food industry TSS

for the pharmaceutical industryopticalautomatic

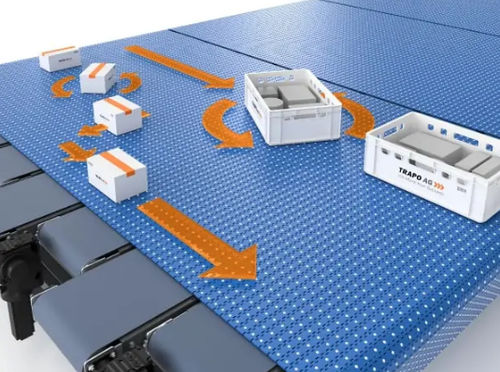

Precise forwarding with one meter of travel per minute With the TRAPO Sphere Sorter (TSS series), TRAPO offers a precise sorter for forwarding, turning, distributing and ejecting packages. The basis is a conveyor belt in which spheres are incorporated. When the ball chain runs from left to right during operation, the balls run with it. This movement results in doubling the speed at which the material is transported on the belt. The TRAPO Sphere Sorter ensures precise forwarding, rotation, distribution and ejection of packages of various sizes, such as boxes and parcels. It can flexibly rotate and distribute the transported goods to multiple outlets at a speed of up to one meter per second. The sorter can be implemented in any width and length and requires a comparatively small area, as it combines several functions. Advantages -ANY WIDTHS AND LINE LENGTHS -SMALL SPACE REQUIREMENT: DIFFERENT FUNCTIONS ON ONE AREA -MODULAR SYSTEM -SMALL PITCH OF THE BALLS (25.4MM): CONVEYS EVEN VERY SMALL PRODUCTS FROM 75 X 75MM -MOVES, POSITIONS, ORIENTS AND ROTATES PRODUCTS SIMULTANEOUSLY AND INDEPENDENTLY IN ANY DIRECTION -NO LIMIT TO THE NUMBER OF ARTICLES THAT CAN BE MOVED SIDE BY SIDE -DISTRIBUTES AND DISCHARGES PRODUCTS FROM MULTIPLE IN-FEED AND OUT-FEED LINES -ONE METER OF TRAVEL PER MINUTE Construction details Ball race: The chain runs from left to right during operation. This movement results in doubling the conveying speed and the belt conveyors running at the bottom enable discharge. Speed: 1 meter per second Drive: Modular belt by 400V geared motors. Controlling belt conveyors by 24V roller motors or synchronous servo motors
