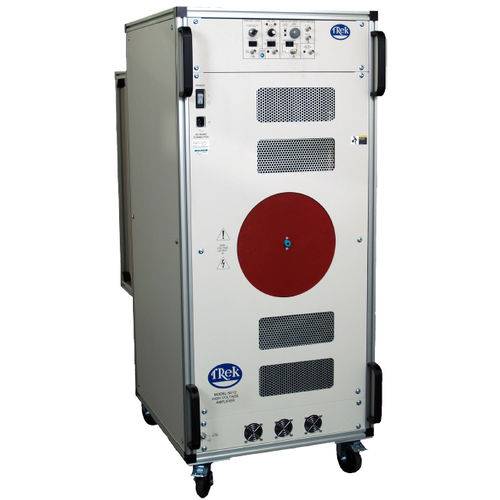

Power amplifier 50/12

DChigh-voltagelow-noise

The Model 50/12 is a DC-stable, high-voltage power amplifier featuring an all solid-state design for high slew rate, wide bandwidth, and low-noise operation. It is designed to provide precise control of output voltages in the range of 0 to ±50 kV DC or peak AC with an output current range of 0 to ±12 mA DC or peak AC. The 4-quadrant, active output stage sinks or sources current to reactive or resistive loads throughout the output voltage range. This is essential to achieve the accurate output response and high slew rates demanded by reactive loads. Key Specifications Output Voltage Range: 0 to ±50 kV DC or peak AC Output Current Range: 0 to ±12 mA DC or peak AC Slew Rate: Greater than 350 V/μs Large Signal Bandwidth: DC to greater than 1.4 kHz (2% Distortion) DC Voltage Gain: Fixed at 5000 V/V Typical Applications Include Dielectric studies Electron beam ion traps & ion sources Electrospinning Electrostatic deflection (including Ion beam steering) Electrostatic flame control Electrostatic levitation Electrostatic precipitation High-voltage cable testing High-voltage component testing Plasma studies (including Dielectric barrier discharge) Features and Benefits Four-quadrant output for driving capacitive loads Closed loop system for high accuracy Short-circuit protected for equipment protection All solid-state design for maintenance free operation DC-stable for programmable supply applications Low output noise for ultra-accurate outputs NIST-traceable Certificate of Calibration provided with each unit CE compliant
