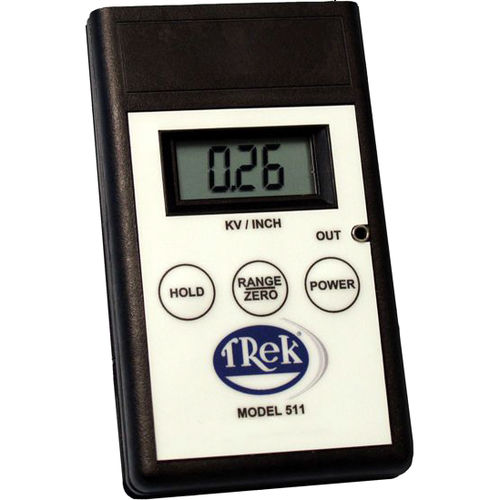

Electrostatic field measuring instrument 511

LEDportable

The Model 511 is a high-quality, portable, chopper-stabilized, non-contacting electrostatic field meter designed for measuring and auditing electrostatic fields in ESD sensitive areas so that operators can find them before they become a problem. Features of the Model 511, such as its LED indicator with a switch selectable measurement range of either ±2 kV or ±20 kV, add to instrument flexibility and benefit the operator through its ease of use. Operators also benefit from the ability to obtain or audit reliable and accurate ESD measurements in either ionized or non-ionized environments. The Model 511 can also be used for testing balance and +/- decay capabilities of ionizers when the optional Ionizer Test Kit (which includes the Model 511, the Model 511-CP Charge Plate and the Model 511-CH Charger) is ordered. Additionally, the Model 511-CP Charge Plate and the Model 511-CH Charger may be ordered separately. Key Specifications Measurement Range: Low range: 0 to ±2 kV / inch High range: 0 to ±20 kV / inch Measurement Accuracy: Voltage monitor output: Better than ±5% of reading, ±10 mV Voltage display: Better than ±5% of reading, ±2 counts Typical Applications Include Audit/monitor electrostatic decay Monitor ESD in semiconductor production Measure electrostatic fields on film, polymers, and paper Assess charge generation of materials, equipment and personnel Features and Benefits Available for use as a Field Meter and for testing balance and +/- decay capabilities of ionizers (with the optional Ionizer Test Kit) Push-button “auto-zero” feature removes any offset voltage Compact, pocket size Easy-to-read LED display
