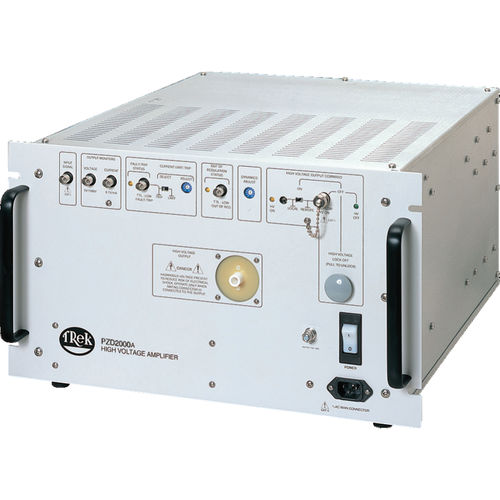

Power amplifier PZD2000A

high-voltageDChigh-power

The Model PZD2000A is a wide bandwidth, high-voltage power amplifier used for precision high power applications. The amplifier incorporates an all-solid-state design for high reliability and low-noise operation. Its four-quadrant output stage sinks as well as sources load current throughout the output voltage range, thus achieving accurate output response and high slew rates, even into highly capacitive loads. Key Specifications Output Voltage: 0 to ±2 kV DC or peak AC Output Current: 0 to ±200 mA DC or ±400 mA peak AC* Slew Rate: Greater than 750 V/μs Large Signal Bandwidth: DC to greater than 60 kHz (3% distortion) DC Voltage Gain: 200 V/V Typical Applications Include Dielectric material characterization Polymer and ceramic corona poling Piezoelectric driving and control Features and Benefits DC accuracy is better than 0.1% of full scale Precision voltage and current monitors provide buffered low-voltage representations of the high-voltage output and load current for monitoring purposes, or for use as feedback signals in closed-loop systems Remote high-voltage ON-OFF suitable for use with automated or computer controlled systems Output stage fully protected against over voltage and over current conditions that may be generate by active loads, overloads or arcing to ground Adjustable current limit or current trip level NIST-traceable Certificate of Calibration provided with each unit CE compliant Features and Benefits DC accuracy is better than 0.1% of full scale Remote high-voltage ON-OFF suitable for use with automated or computer controlled systems
