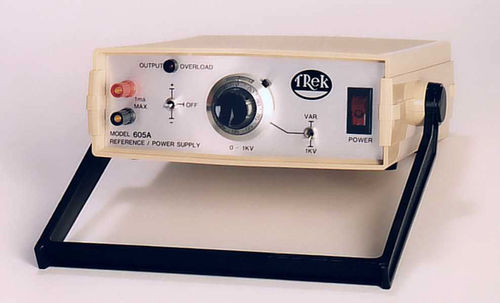

The Trek Model 605A is a high voltage power supply and reference supply designed to provide precise control of output voltages in the range of 0 to +1 kV DC or 0 to -1 kV DC with an output current range of 0 to ±1 mA DC.
The Model 605A provides two modes of operation, a fixed mode providing a constant +1 kV or -1 kV output, and a variable mode providing variable control of the output voltage with a one (1) volt resolution over a range of 0 to ±1 kV.
The Model 605A features an all-solid-state design for accurate, low-noise operation and is protected against over-current conditions that may be generated by output short circuits to ground.
A Digital Enable feature provides a connection for a remote device to turn on and off the high voltage of the instrument. This makes the 605A suitable for automated or computer-controlled systems.
The 605A is designed to be operated on a bench top.
Please contact TREK, INC. for further information about this product and its various applications.
We would like to talk with you about your particular needs and determine how this product or other Trek products can meet your specific requirements.
Output Voltage Range
Fixed Mode
+1 kV or -1 kV
Variable Mode
0 to +1 kV or
0 to -1 kV
Output Current Range
0 to ±1 mA
Output Accuracy
Better than 0.1% of
Full Scale
Line and Load
Regulation Better than
0.002%
Automatic current limit
feature to protect the
instrument from output
short circuits or
overloads
Remote high voltage
on/off feature ideal for
use with automated or
computer-controlled
systems
