AC/DC power supply 668B

adjustableswitchingtabletop

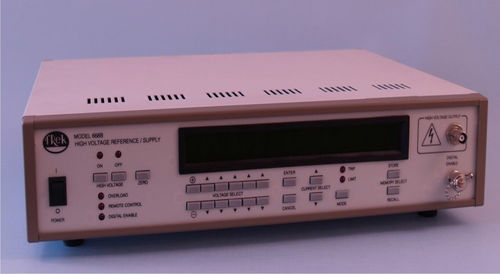

The Trek Model 668B HVPS is a precision, high-voltage, reference power supply with an adjustable output voltage range of 0 to +3 kV DC or 0 to -3 kV DC and an output current capability of up to ±5 mA DC. The HVPS front panel push-buttons are used to select the desired output voltage with 100 mV resolution. Each decade of the output voltage is independently controlled by its own set of up and down push buttons. Current control is provided by front panel selection of either supply trip-off or limiting at the preset current value. Nine programmable memory locations are provided for saving and recalling frequently used output voltage and current settings. A voltage setting (including polarity) and a current limit or trip value can be stored in each memory location. The memory locations can be accessed from the front panel or through an optional digital communications interface. An easy-to-read, sixteen-character LED display indicates the output voltage, the current limit or current value, as well as the memory location currently selected. The Digital Enable feature provides a connection for a TTL signal or a switching device to turn on and off the high voltage remotely. The optional digital communications interface is well suited for automated test equipment applications. The 668B HVPS can be operated on a bench top or, with optional hardware, in a 19-inch rack. Output Voltage Range 0 to +3 kV DC 0 to -3 kV DC Output Current Range 0 to ±5 mA DC Output Accuracy Better than 0.015% of Full Scale Nine Programmable Memory locations Adjustable Current Limit or Current Trip Value Optional Digital Communications Interface Easy-to-Read 16-Character LED Display
