Performance tester 157

electrostatic discharge

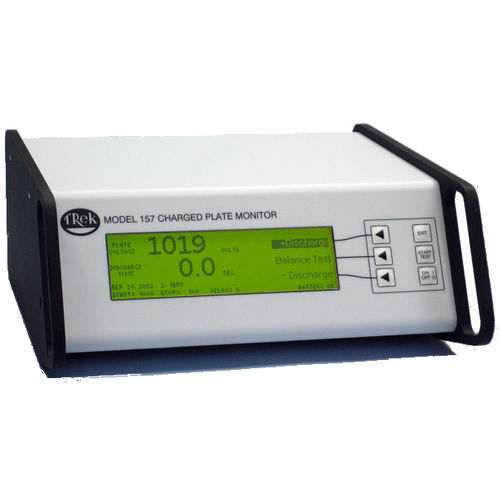

Trek’s Model 157 Charged-Plate Monitor offers better accuracy, stability and bandwidth than conventional designs. It combines Trek’s patented precision charge-measurement capability with features that drive down ionizer maintenance and performance testing costs. Enhanced features, such as those that enable the operator to store and retrieve data as data points or graphs and record operator comments for reference, make the Model 157 ideal for use in dissipative testing of materials and monitoring of static charge. Key Specifications Bandwidth (-3 dB): DC to 80 Hz Decay Mode Thresholds: Start and stop voltages are programmable from 1 to ±1000V in 1 V increments Data Retrieval/Analysis: Data can be exported from the Model 157 into a PC through a USB port for subsequent analysis or record keeping Data Acquisition Speed: When connected to a computer in Fast Mode, data can be collected at a rate of 1 ms/data point (Normal mode generally collects at a rate of 10 ms per data point).This is useful for evaluating the resistive or dissipative properties of materials Typical Applications Include ESD monitoring of sensitive manufacturing processes such as semiconductor, disk drive and LCD Testing of all types of ionizers, including room ionization systems, AC and DC blowers, nuclear ionizers, gun type ionizers, and pulsed DC ionizers High temperature applications ESD measurement of de-ionized water Dissipative testing applications
