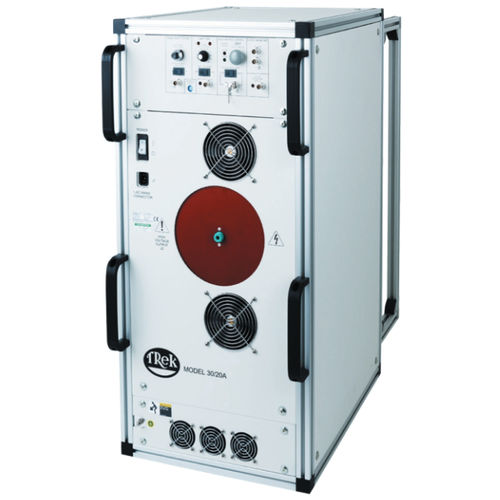

Power amplifier 30/20A

DChigh-voltagelow-noise

The Model 30/20A is a DC-stable, high-voltage power amplifier featuring an all solid-state design for high slew rate, wide bandwidth, and low-noise operation. It is configured as noninverting with a fixed gain of 3000 V/V and is protected against over voltage and overcurrent conditions that may be generated by active loads or by output short circuits to ground. Precision voltage and current monitors provide low-voltage representations of the high-voltage output and load current for monitoring purposes or for use as feedback signals in a closed-loop system. The 4-quadrant, active output stage sinks or sources current to reactive or resistive loads throughout the output voltage range. This is essential to achieve the accurate output response and high slew rates demanded by reactive loads. Key Specifications Output Voltage: 0 to ±30 kV DC or peak AC Output Current: 0 to ±20 mA DC or peak AC Slew Rate: Greater than 550 V/µs Large Signal Bandwidth: DC to greater than 2.5 kHz (2% Distortion) Gain: 3000 V/V Fixed Applications Include Dielectric studies Electron beam ion traps and ion sourcing Electrospinning Electrostatic deflection (including ion beam steering) Electrostatic flame control Electrostatic levitation Electrostatic precipitation High-voltage cable testing High-voltage component testing Plasma studies (including dielectric barrier discharge) Features and Benefits Four-quadrant output for driving capacitive loads Closed loop system for high accuracy Short-circuit protected for equipment protection All solid-state design for maintenance free operation
