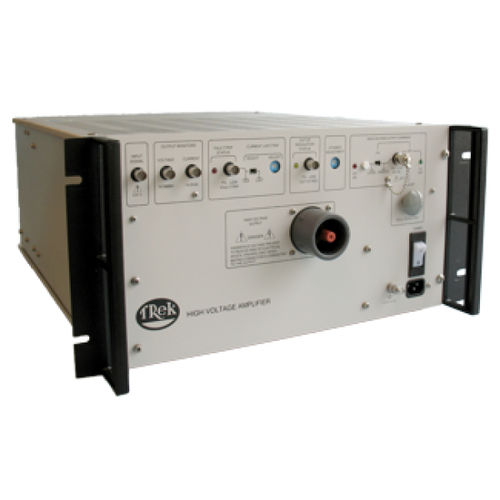

Power amplifier P0621N

DCrack-mounthigh-voltage

Trek Model P0621N is a high-voltage DC-stable piezo driver/amplifier designed to provide precise control of output voltages in ranges that are customer specified within a range of available settings. It is configured as a noninverting amplifier with a variable DC gain. An inverting amplifier configuration is also available. The unit features an all-solid-state design, a high slew rate and a four-quadrant active output stage which sinks or sources current into reactive or resistive loads throughout the output voltage range. This capability is essential for achieving the accurate output responses and high slew rates demanded by reactive loads. Key Specifications Output Voltage: 0 to -30 kV DC or peak AC Output Current: 0 to ±20 mA DC or peak AC Slew Rate: Greater than 350 V/µs Large Signal Bandwidth: DC to greater than 3.5 kHz (1% Distortion) Gain: 3000 V/V Applications Closed-loop systems Automated or computer controlled systems Features and Benefits Four-quadrant Closed loop system for high accuracy Short-circuit protected for equipment protection active output stage sinks or sources current into reactive or resistive loads throughout the output voltage range All solid-state design for maintenance-free operation DC-stable for programmable supply applications compliant (180-250V AC unit) NIST-traceable Certificate of Calibration provided with each unit CE compliant (180-250V AC unit)
