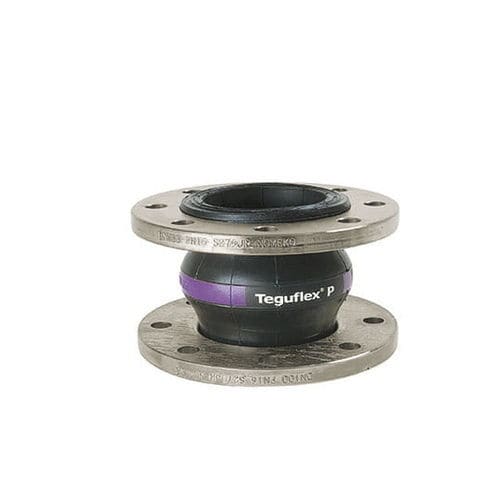

Rubber pipe expansion joint TEGUFLEX® Proundflangefor the chemical industry
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for the chemical industry
- Nominal diameter
Max.: 300 mm
(11.81 in)Min.: 32 mm
(1.26 in)- Operating temperature
Max.: 150 °C
(302 °F)Min.: -15 °C
(5 °F)- Length
130 mm
(5.12 in)- Pressure
6 bar, 8 bar, 10 bar, 16 bar
(87 psi, 116 psi, 145 psi, 232.1 psi)
Description
Inner and outer Viton®compound
Applications
Highly agressive chemicals, strong acids, aromatic solvents up to 150°C
Advantages
Compensate thermal elongation Isolate vibrations Absorb pressure surges Correct misalignments Ensure a tight sealing
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
FKM, black, fluted
Reinforcement
Aramid
Cover
FKM, black, smooth, weather resistant
Additional information
Inner liner PTFE, vacuum ring (316Ti), flameguards, PTFE safety shields on request.
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16- ASME B16.5 150lbs. Other types on request.
