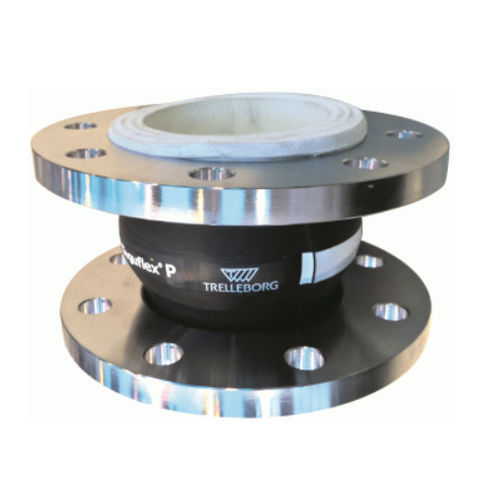

Rubber pipe expansion joint TEGUFLEX® Proundflangefor the food industry
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for the food industry
- Nominal diameter
Max.: 300 mm
(11.81 in)Min.: 32 mm
(1.26 in)- Operating temperature
Max.: 90 °C
(194 °F)Min.: -25 °C
(-13 °F)- Length
130 mm
(5.12 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)
Description
FDA Agreement
Fats & oils included
Advantages
Compensate thermal elongation Isolate vibrations Absorb pressure surges Correct misalignments Ensure a tight sealing
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
NBR, white, fluted, food grade (FDA)
Reinforcement
Nylon cord
Cover
Epichlorhydrin (ECO), black, smooth, oil and weather resistant
Additional information
Inner liner PTFE, vacuum ring (316Ti), flameguards, PTFE safety shields on request
In accordance with FDA for food use, EC 1935/2004 and EC 2023/2006
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16 - ASME B16.5 150lbs. Other types on request.
