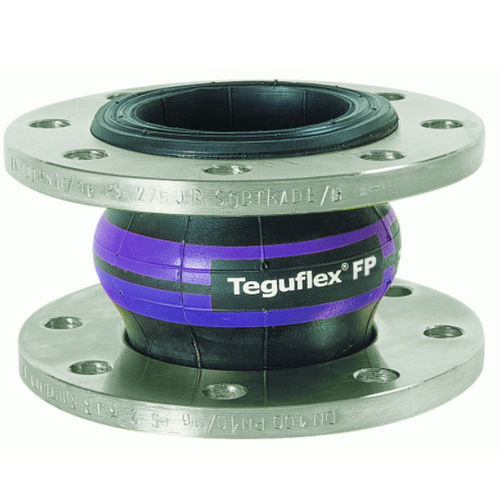

Rubber pipe expansion joint TEGUFLEX® Wroundflangefor the chemical industry
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for the chemical industry
- Nominal diameter
80 mm
(3.15 in)- Operating temperature
Max.: 150 °C
(302 °F)Min.: -15 °C
(5 °F)- Length
150 mm
(5.91 in)- Pressure
6 bar, 8 bar, 10 bar, 16 bar
(87 psi, 116 psi, 145 psi, 232.1 psi)
Description
Inner and outer Viton®compound
Applications
Highly agressive chemicals, strong acids, aromatic solvents up to 150°C
Advantages
Compensate thermal elongation Isolate vibrations and absorb pressure surges Correct misalignments
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
FKM, black, fluted
Reinforcement
Aramid
Cover
FKM, black, smooth, weather resistant
Couplings/Fittings
Turnable flanges in zinc plated carbon steel S235JR/S275JR Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc. EN 1092 PN6/10/16 - ASME B16.5 150lbs - Other types on request.
Additional information
Vacuum ring (316Ti/316L), flameguards, PTFE safety shields on request PED (2014/68/EU)
