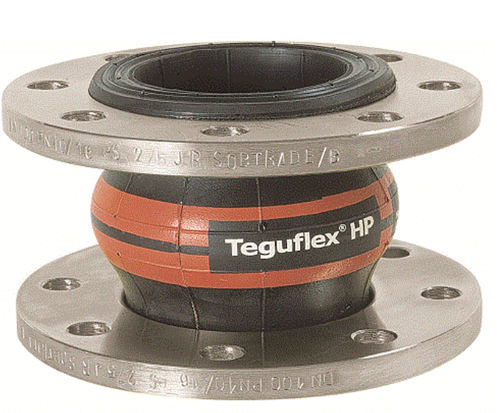

Rubber pipe expansion joint TEGUFLEX® P HP
roundflangefor water

rubber pipe expansion joint
rubber pipe expansion joint
Add to favorites
Compare this product


Characteristics

Material
rubber
Configuration
round
Installation system
flange
Applications
for water
Nominal diameter

Max.: 300 mm
(11.81 in)

Min.: 32 mm
(1.26 in)

Operating temperature

Max.: 130 °C
(266 °F)

Min.: -35 °C
(-31 °F)

Length

130 mm
(5.12 in)

Pressure

6 bar, 10 bar, 16 bar
(87 psi, 145 psi, 232.1 psi)

Description

Applications Hot water, steam, hot air up to 130º Advantages Compensate thermal elongation Isolate vibrations Absorb pressure surges Correct misalignments Ensure a tight sealing Design A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium. Inner tube EPDM special, black, fluted Reinforcement Aramid Cover EPDM special, black, smooth, weather and ozone resistant Couplings/Fittings Turnable flanges in zinc plated carbon steel S235JR Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc. EN 1092 PN6/10/16- ASME B16.5 150lbs. Other types on request. Additional information Inner liner PTFE, vacuum ring (316Ti), flameguards, PTFE safety shields on request. Type Approvals: DNV-GL and ABS PED (2014/68/EU) Couplings Fittings Turnable flanges in zinc plated carbon steel S235JR Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc. EN 1092 PN6/10/16- ASME B16.5 150lbs. Other types on request.
