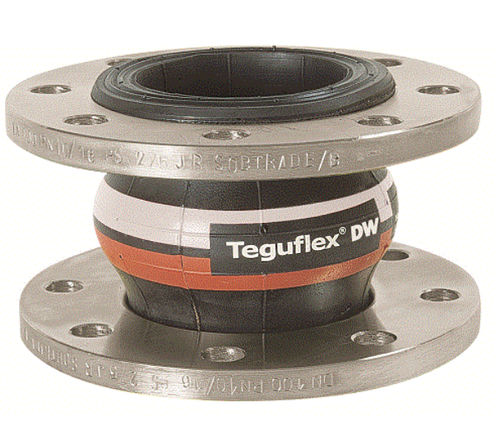

Rubber pipe expansion joint TEGUFLEX® W DW roundflangefor water
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for water
- Nominal diameter
65 mm, 400 mm
(2.56 in, 15.75 in)- Operating temperature
Max.: 90 °C
(194 °F)Min.: -25 °C
(-13 °F)- Length
150 mm, 200 mm
(5.91 in, 7.87 in)- Pressure
8 bar, 10 bar, 16 bar
(116 psi, 145 psi, 232.1 psi)
Description
According to European directives
ACS certification
Applications
Drinking water
Advantages
Compensate thermal elongation Isolate vibrations Absorb pressure surges Correct misalignments Ensure a tight sealing
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
EPDM, black, fluted, ACS, WRAS, AS/NZS 4020
Reinforcement
Nylon cord
Cover
EPDM, black, smooth, weather resistant
Additional information
Vacuum ring (316Ti/316L), flameguards, PTFE safety shields on request.
Drinking water approvals: ACS, WRAS and AS/NZS 4020
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR/S275JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16- ASME B16.5 150lbs. Other types on request
