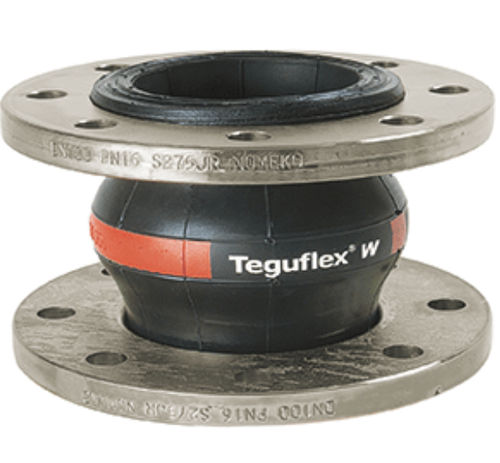

Rubber pipe expansion joint TEGUFLEX® Wroundflangefor water
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for water
- Other characteristics
- ATEX
- Nominal diameter
Max.: 450 mm
(17.72 in)Min.: 32 mm
(1.26 in)- Operating temperature
Max.: 90 °C
(194 °F)Min.: -35 °C
(-31 °F)- Length
150 mm, 200 mm
(5.91 in, 7.87 in)- Pressure
8 bar, 10 bar, 16 bar
(116 psi, 145 psi, 232.1 psi)
Description
Applications
Hot water up to 90°C, cooling water, salt solutions, chlorine solutions, esters and ketones.
Advantages
Compensate thermal elongation Isolate vibrations and absorb pressure surges Correct misalignments
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
EPDM, black, fluted
Reinforcement
Nylon cord
Cover
EPDM, black, smooth, weather and ozone resistant
Couplings/Fittings
Turnable flanges in zinc plated carbon steel S235JR/S275JR Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc. EN 1092 PN6/10/16 - ASME B16.5 150lbs. Other types on request.
Additional information
Inner liner PTFE, vacuum ring (316Ti/316L), flameguards, PTFE safety shields on request. Safe for use in ATEX areas Type Approvals: DNV-GL PED (2014/68/EU)
