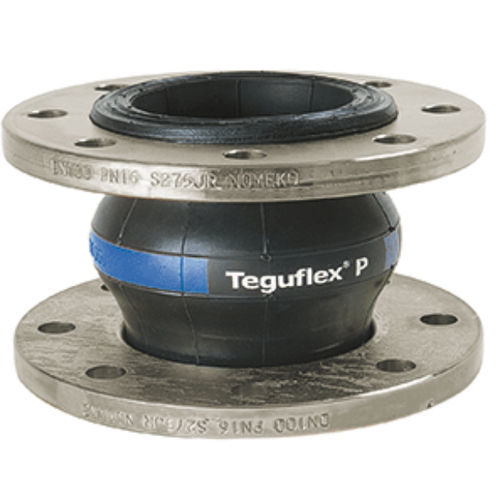

Rubber pipe expansion joint TEGUFLEX® Proundflangefor abrasive media
Add to favorites
Compare this product
Characteristics
- Material
- rubber
- Configuration
- round
- Installation system
- flange
- Applications
- for abrasive media
- Nominal diameter
Max.: 300 mm
(11.81 in)Min.: 40 mm
(1.57 in)- Operating temperature
Max.: 90 °C
(194 °F)Min.: -35 °C
(-31 °F)- Length
130 mm
(5.12 in)- Pressure
10 bar, 16 bar
(145 psi, 232.1 psi)
Description
Abrasive media
Oil & weather resistant cover
Applications
Abrasive material such as slurry, sand, calcium and other suspended solid particles. Excellent resistance to friction and impacts
Advantages
Compensate thermal elongation Isolate vibrations and absorb pressure surges Correct misalignments
Design
A wide range of moulded standard bellows up to 1000 mm with a large variety of rubber linings to meet almost all kinds of medium.
Inner tube
SBR, black, fluted
Reinforcement
Nylon cord
Cover
CR (chloroprene), black, smooth, weather resistant
Additional information
Inner liner PTFE, vacuum ring (316Ti), flameguards, PTFE safety shields on request.
PED (2014/68/EU)
Couplings Fittings
Turnable flanges in zinc plated carbon steel S235JR
Other material: stainless steel 316, hot-dip galvanized, EPOXY painting, etc.
EN 1092 PN6/10/16 - ASME B16.5 150lbs. Other types on request.
