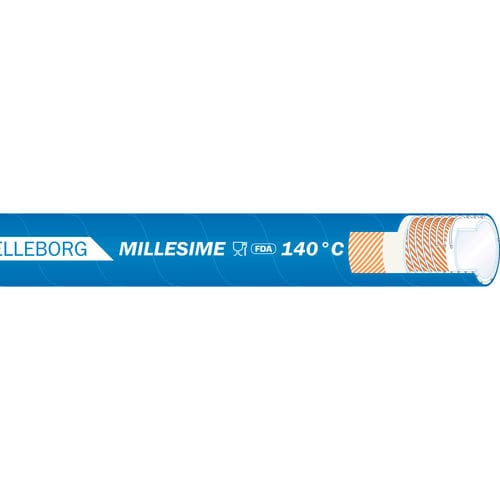

Alcohol hose MILLESIME
beveragefor milksynthetic

Alcohol hose - MILLESIME - Trelleborg Industrial Hose - beverage / for milk / synthetic
Alcohol hose - MILLESIME - Trelleborg Industrial Hose - beverage / for milk / synthetic
Alcohol hose - MILLESIME - Trelleborg Industrial Hose - beverage / for milk / synthetic - image - 2
Add to favorites
Compare this product


Characteristics

Use
alcohol, beverage, for milk
Material
synthetic
Applications
suction, transport, discharge, transfer, for the food industry, process, for bulk tank trucks
Other characteristics
flexible, smooth, weather-resistant, standard, seamless, fabric-braided, spiral wire, rubber-coated
Inner diameter

Min.: 25 mm
(0.984 in)

Max.: 150 mm
(5.906 in)

Outer diameter

Min.: 36 mm
(1.417 in)

Max.: 171.5 mm
(6.752 in)

Pressure

10 bar
(145.038 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 100 °C
(212 °F)

Delivered length

20 m, 40 m
(65'07" , 131'02" )

Description

Applications Suction and discharge of liquid foodstuffs such as milk, wine, beer, cider, fruit juice, soda, vinegar and alcohol up to 96% with exception of fatty foodstuffs and oils. Particularly designed for additional air lines (temperature up to 140°C) on road tankers carrying bulk products. Advantages Good flexibility and easy to handle. Suitable for road tankers equipment except compressor lines. A smooth, seamless, white food grade tube that does not propagate bacterial growth. Resistant to cleaning with most common detergents (see our cleaning guideline for details) or with steam at max. 140°C. Cover with very good ageing and weather resistance. Contains no phthalate. Overview Inner tube food grade quality EPDM, white, smooth Reinforcement synthetic textile with embedded steel helix Cover weather resistant EPDM, blue, fabric impression Standard/Approval EU regulations No. 1935/2004, 2023/2006. FDA regulation No. 21 CFR 177.2600. French legislation. All relevant migrations tests (France and FDA) were performed by the French institute of Poitiers (IANESCO) and confirmed compliant. Couplings/Fittings Specially designed fittings are available, please contact us for further information in order to get optimum connections.
