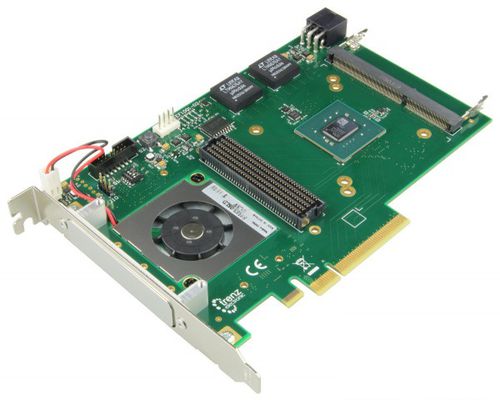

PCIe video capture card TEF1001-01-325-2C

FPGA

The Trenz Electronic TEF1001-02-D2CX4-A is a PCIe FMC Carrier integrating a Xilinx Kintex-7 325T FPGA, 32 MByte SPI Flash, a 4 lane PCIe and a DDR3 SODIMM with ECC Socket. It can also be equipped with Kintex-7 160T or 410T, please ask for minimum quantities. All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options. Xilinx Kintex-7 XC7K325T-2FBG676C 1 x Vita 57.1 FMC HPC Slot 4 lane PCIe Gen2 DDR3 SODIMM with ECC Socket (max. 8 GByte) 32 MByte SPI Flash Programmable clock generator Si5338 200 MHz Low-Jitter LVDS oscillator 12V power input protection circuit 12V power input through PCIe connector edge available (with priority to the ATX input power connector) FMC FAN on/off controlled by a pin-present on FMC High performance DC-DC converters
