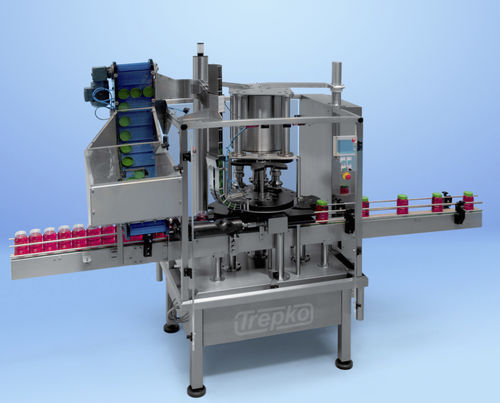

Bottle capping machine 3000 Series

BOTTLE CAPPERS •The machines are designed entirely from stainless, steel with full safety guarding and a curved base, for cleanliness and hygiene with minimal moving parts in contact with the containers. •An even feed cap elevator and cap unscrambler ensures an even feed of screw caps to the cap pick and place sealing section. •Caps from the cap unscrambler are fed down a cap feed chute into the capping heads. The unit is equipped with a no container no cap feature. •Caps are placed on the containers by an adjustable pick and place cap gripper. •The drive train is equipped with a linear transmission system. The main drive is controlled by means of an inverter. •Grease lubrication is centralized, with grouped and easily accessible lubrication points. •The touch screen interface allows for parameters to be changed via the touch screen, allowing for fast changeovers between container sizes. •The standard machine can handle containers with a maximum height of 300mm and a minimum height of 120mm. •A full range of accessories for the capper, such as cap rinsers, can also be supplied. This also includes a full range of upstream- and downstream equipment.
