Layer palletizer 740 series
roboticgantrycase

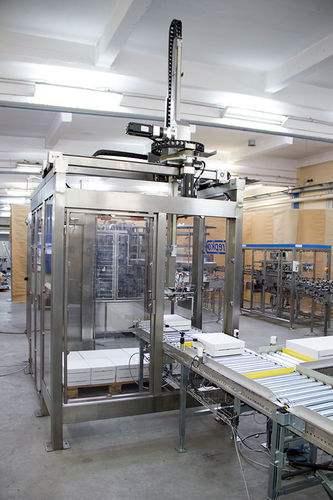

Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case
Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case
Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case - image - 2
Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case - image - 3
Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case - image - 4
Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case - image - 5
Layer palletizer - 740 series - Trepko A/S - robotic / gantry / case - image - 6
Add to favorites
Compare this product


Characteristics

Type
layer, robotic, gantry
Product applications
case, tray, carton
Other characteristics
automatic, modular
Throughput

3 p/min

Description

Sweep palletiser & gantry robot palletiser A modular designed palletiser which can be adapted for both semi or fully automatic operation. The loading height can be at high or low level to allow connection to any existing conveyors. Packs are collated on an infeed conveyor, row by row, before being transferred to the loading plate by a pneumatic pusher. When a layer is complete, the loading plate seeks the correct level and moves out above the pallet for adjustment to the correct level. Two sweeper arms, one above and one below the loading plate, fix the new layer as well as the previous load, the loading plate then retracts. All movements of the loading table are motor driven. The palletiser can be equipped with pallet magazine and pallet outfeed conveyors. The machine is easy to fit into an existing factory layout as the pallet magazine, infeed and outfeed conveyors can be placed in several different positions. Gantry palletiser The machine can be fitted with different types of lifting tools including vacuum suction cups, grip/clamp and or lifting plates and most products can therefore be handled. The gantry robot is flexible and can be equipped with automatic pallet handling. In addition to this the machine is easy to fit into an existing factory layout as the pallet magazine and Infeed/Outfeed conveyors can be placed in several different positions. • different options of the palletizing system dependent on the type of the packed produkt • palletizing different type of product: cases, shrink wrapped trays,trays , cartons • possibility of different operation – semi or full automatic operation
