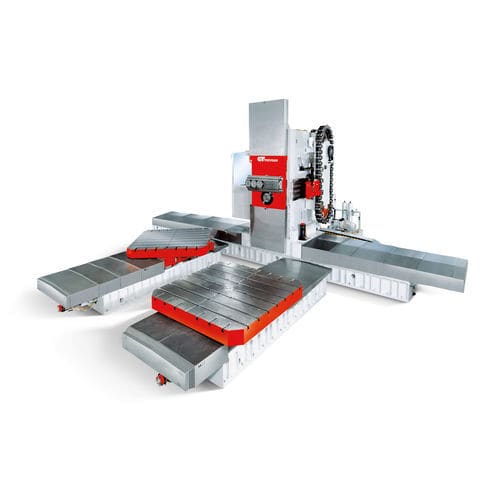

CNC milling-turning center DS1200/450C

universalwith rotary tabletraveling-column

With the machining center models DS1200/450C – DS1500/450C, Trevisan presents the heavy-duty series with a mobile column and integrated facing heads that can turn with the workpiece fixed up to diameters of 2000 mm on the DS1200/450C and 2500 mm on the DS1500/450C. These machines can be equipped with one or two continuously rotating tables with standard dimensions of 2400 x 2400 mm. The tables, on request, can also be tiltable up to 10° to allow the machining of parts such as Tricentric butterfly valves or Hubs of the wind turbine, just to name a couple. Maximum load capacity 25,000 kg. The DS1200/450C and DS1500/450C series are equipped with circular RAM spindles with a 280 mm diameter. In the RAM version, the milling spindle has a working stroke of 700 mm and allows to penetrate inside the part. The spindle is equipped with U-axis management that allows it to use tool changeable facing heads that are capable of turning up to 250 mm in diameter. Speed up to 2.000 RPM. Trevisan is organized with a team of computer technicians who create the software for the machines and customize it according to the machining needs of each customer. The tool changer magazine is offered in the standard version with 40 tool positions that can be extended to 80. The magazine can be equipped with memory chips to transfer tool information from the presetting machine to the machining center.
