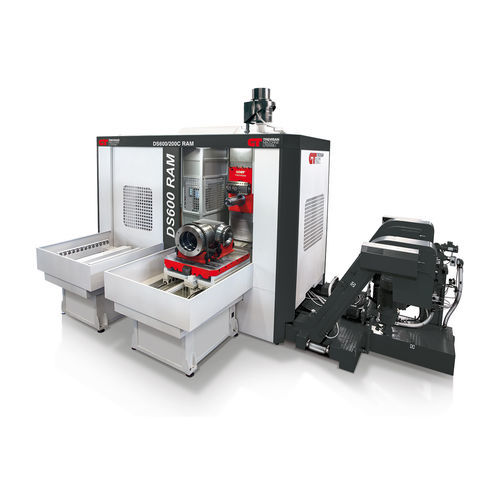

CNC milling-turning center DS600/200C

universalprecision

The machining center DS600/200C is the most requested model, sold all over the world, also in the RAM version, able to satisfy the needs of machining up to a diameter of 900 mm. It is a product built for versatility, robustness, and precision. An ideal machining center for every mechanical workshop. This model, like the rest of the series of Trevisan machining centers, is equipped with a turning head that allows you to perform turning operations on a fixed part. The device is even more versatile as it is equipped with 2 tool-clamps in its carriage: this allows a single tool to be moved from the first to the second tool-clamp, performing a wider range of turning diameters. The turning device allows execution of spherical, conical, cylindrical turning, and threading operations always using ideal cutting parameters due to the ability to work with constant cutting speed. In the spindle head, a milling/drilling spindle works to expand the potential of this model, combining the turning operations performed by the facing head with the conventional ones carried out by a 37 Kw spindle with speeds up to 3,000 RPM. This spindle is used to perform all milling, drilling, and tapping operations and can be equipped with angle heads or other accessories. This specific model features the RAM variant, which increases the machine’s performance by increasing power. In the RAM version, the milling spindle is no longer in a fixed position, but has a working stroke of 350 mm and allows penetration into the part. The spindle is equipped with U-axis management that allows it to use tool changeable facing heads that are capable of turning up to 250 mm in diameter.
