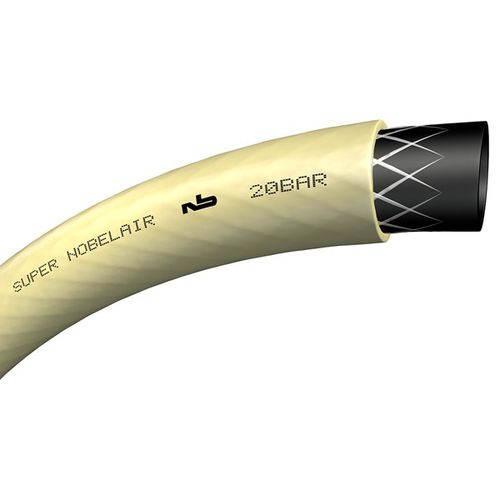

Compressed air hose SUPER NOBELAIRPVCwith polyester reinforcementfor automotive applications
Add to favorites
Compare this product
Characteristics
- Use
- for compressed air
- Material
- PVC, with polyester reinforcement
- Applications
- for automotive applications, for the wood industry, for the plastics industry, workshop
- Other characteristics
- high-resistance, reinforced, 3-layers, impact-resistant
- Inner diameter
Max.: 25 mm
(0.984 in)Min.: 6.3 mm
(0.248 in)- Outer diameter
Max.: 33.5 mm
(1.319 in)Min.: 11 mm
(0.433 in)- Pressure
20 bar
(290.075 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -15 °C
(5 °F)- Delivered length
25 m, 50 m, 100 m
(82'00" , 164'00" , 328'01" )
Description
HOSE FOR COMPRESSED AIR SUPPLY.
Three layer design, in extra flexible PVC, with high resistant polyester fibre reinforcement.
APPLICATIONS
Pneumatic tools
Equipment of assembly workshops, wall mounted reels, carts and compressors
SECTORS OF ACTIVITY
Automotive industry
Plastics industry
Assembly factories
Garages (for cars, lorries and agricultural vehicles)
Woodwork
ADVANTAGES
The balanced reinforcement of Super NOBELAIR® enables it to withstand high pressure with minimal distortion. Thus, it can withstand extended and frequent pressure impulse cycles.
The composition of this flexible and light hose provides it with good resistance to impacts and distortion.
Moreover, the PVC composition eliminates any risks of cracks appearing (particular defect of rubbers), thus improving safety and a long service life.
FITTINGS
Quick connectors, barbed or serrated connectors.
Band, worm drive, screw or butterfly clamps.
Swaged fittings can be used if they do not damage the hose.
CHEMICAL RESISTANCE
See in industry catalog, table pages 106 to 109 column A.
MARKINGS
SUPER NOBELAIR 20 BAR [Batch number]
