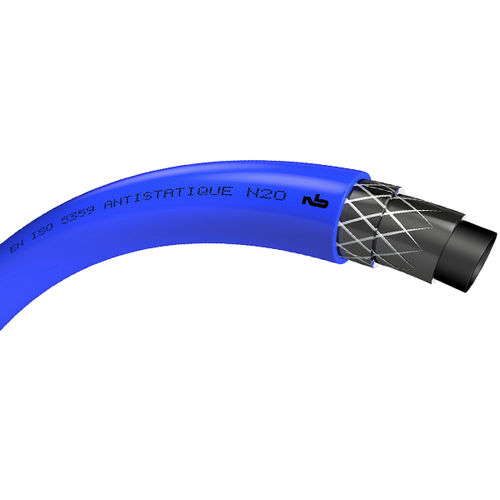

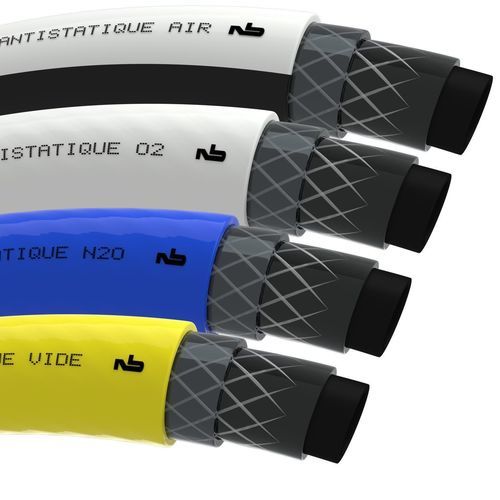

Gas hose NOBELAIR® AS/R
with polyester reinforcementPVCfor transfer

Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer - image - 2
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer - image - 3
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer - image - 4
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer - image - 5
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer - image - 6
Gas hose - NOBELAIR® AS/R - TRICOFLEX - with polyester reinforcement / PVC / for transfer - image - 7
Add to favorites
Compare this product


Characteristics

Use
for gas
Material
with polyester reinforcement, PVC
Applications
for transfer, medical
Norms
EN 559
Other characteristics
lightweight, anti-static, reinforced
Inner diameter

6.3 mm
(0.248 in)

Outer diameter

12.4 mm
(0.488 in)

Pressure

15 bar
(217.557 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -15 °C
(5 °F)

Delivered length

50 m
(164'00" )

Description

REINFORCED HOSE FOR MEDICAL GAS. IN ACCORDANCE WITH EN ISO 5359 STANDARDS. APPLICATIONS Specially designed for transfer of medical gas. SECTORS OF ACTIVITY Hospitals Ambulances ADVANTAGES NOBELAIR® AS/R EN  ISO 5359 hose is a top of the range hose, linking comfort of use to resistance in the most arduous conditions. Its extremely flexible, lightweight and user friendly. Its considerable thickness ensures a retained profile. The well balanced reinforcement provides it with excellent dimensional stability. The antistatic inner layer is a guarantee of safety if used in hazardous environments. This capability is permanent, obtained by the addition of carbon directly into the hose material. FITTINGS Warning Metal connectors must be used to maintain electrical continuity: Quick connectors, barbed or serrated connectors. Swaged fittings can be used if they do not damage the hose. CHEMICAL RESISTANCE See industrial catalogue, table pages 106 to 109 column A.
