Water hose 063 seriesPVCpolyesterdischarge
Add to favorites
Compare this product
Characteristics
- Use
- for water
- Material
- PVC, polyester
- Applications
- discharge, for swimming pool
- Inner diameter
12.5 mm, 15 mm, 19 mm
(0.492 in, 0.591 in, 0.748 in)- Outer diameter
18.2 mm, 21.1 mm, 26 mm
(0.717 in, 0.831 in, 1.024 in)- Pressure
9 bar, 10 bar
(130.534 psi, 145.038 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: -15 °C
(5 °F)- Delivered length
15 m, 25 m, 50 m, 80 m
(49'02" , 82'00" , 164'00" , 262'05" )
Description

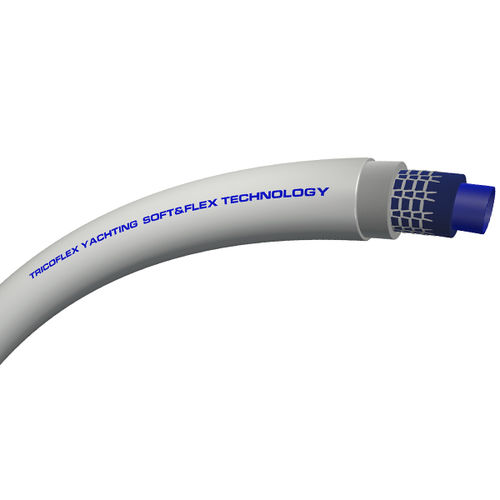

5-LAYER MULTIPURPOSE HOSE WITH KNITTED REINFORCEMENT.
Exterior covering in PVC. With woven polyester fibre reinforcement and two-layer smooth lining.
APPLICATIONS
Water supply and delivery
SECTORS OF ACTIVITY
Yachting
Swimming pools
ADVANTAGES
Flexible and strong. White outer layer makes it particularly unobstrusive on boats and around swimming pools.
FITTINGS
Connectors with band, screw or ‘O’ type clamps. Automatic connectors for watering.
CHEMICAL RESISTANCE
See industrial catalogue, table pages 106 to 109 column A.
