Dust hose WINDFLEX 806 M ELfor oil mistPUfor explosive areas
Add to favorites
Compare this product
Characteristics
- Use
- for dust, for oil mist
- Material
- PU
- Applications
- for fume extraction, discharge, for industrial applications, for hazardous environments, for explosive areas
- Other characteristics
- anti-static, spiral, stainless steel spiral, zinc-plated steel spiral
- Inner diameter
Min.: 40 mm
(1.575 in)Max.: 500 mm
(19.685 in)- Temperature
Min.: -40 °C
(-40 °F)Max.: 90 °C
(194 °F)- Delivered length
5 m, 10 m
(16'04" , 32'09" )
Description

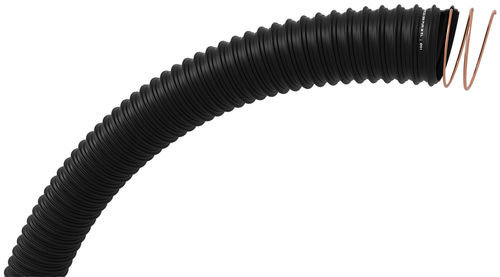

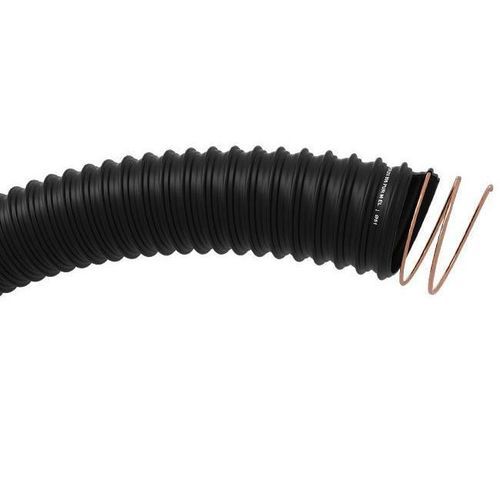

ESTER-BASED POLYURETHANE HOSE REINFORCED WITH A COATED STEEL SPIRAL SPRING
Recommended for applications in hazardous areas and explosive atmospheres. Ul94 v2 certified non-flammable polyurethane.
Resistivity < 106 Ω/m complies with NF EN ISO 8031
APPLICATIONS
Suction and expulsion of powders, pellets, abrasive particles, oil fumes
SECTORS OF ACTIVITY
All industries, timber and paper, plastics, quarries, construction
ADVANTAGES
Highly flexible and compressible, the WINDFLEX® 806 ducting is made from conductive polyurethane throughout. Its very smooth internal surface reduces pressure loss. It is very resistant to negative pressure and abrasion.
FITTINGS
Semi-heavy or T-bolt hose clamps. Before assembly, make sure that the connector is not damaging to the inner tube (particularly in the case of poorly deburred and sharp fittings).
CHEMICAL RESISTANCE
See the Chemical resistance Chart of Hoses, column C.
MARKINGS
WINDFLEX® 806 PUR M EL Ø int [N° lot] Made in France
