Compressed air hose AIRTOP
NBRSBRwith polyester reinforcement

Compressed air hose - AIRTOP - TRICOFLEX - NBR / SBR / with polyester reinforcement
Compressed air hose - AIRTOP - TRICOFLEX - NBR / SBR / with polyester reinforcement
Compressed air hose - AIRTOP - TRICOFLEX - NBR / SBR / with polyester reinforcement - image - 2
Compressed air hose - AIRTOP - TRICOFLEX - NBR / SBR / with polyester reinforcement - image - 3
Add to favorites
Compare this product


Characteristics

Use
for compressed air
Material
NBR, SBR, with polyester reinforcement
Applications
construction, for industrial applications
Other characteristics
weather-resistant
Inner diameter

16 mm, 20 mm, 25 mm
(0.63 in, 0.787 in, 0.984 in)

Outer diameter

23 mm, 29 mm, 34 mm
(0.906 in, 1.142 in, 1.339 in)

Pressure

15 bar
(217.557 psi)

Temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Delivered length

20 m, 40 m
(65'07" , 131'02" )

Description

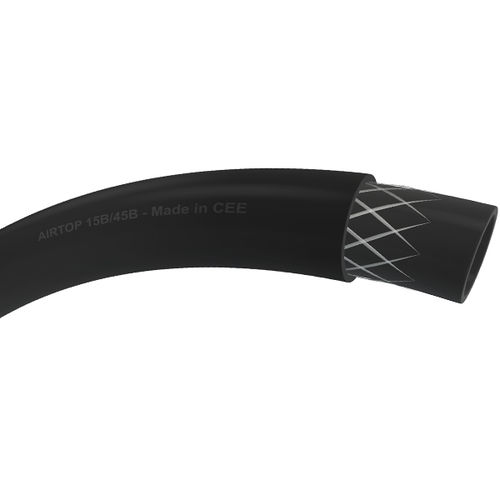

Rubber hose reinforced with textile fibres. Made of flexible SBR and NBR, with resistant polyester fibre reinforcement. Applications Compressor equipment used to supply pneumatic tools for worksite use. Normal use. Sectors of activity Construction and civil engineering Industry Advantages Due to its optimal design, Airtop is a hose which offers a very attractive cost/benefit ratio. Suited for all-weather use, it is the ideal hose for supplying compressed air on worksites. Accords Quick fittings with claw clamps of Ø 29. Markings AIRTOP PS 15 B / PLNE  45 B – Made in CEE trimestre/year of fabrication

Catalogs

Other TRICOFLEX products
