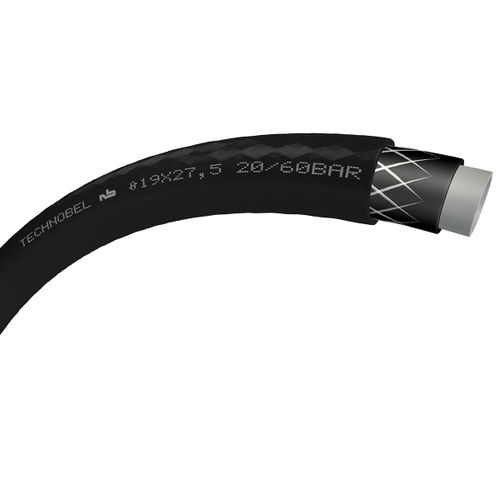

Multi-use hose TECHNOBEL®
for chemical productsfor compressed airpolymer

Multi-use hose - TECHNOBEL® - TRICOFLEX - for chemical products / for compressed air / polymer
Multi-use hose - TECHNOBEL® - TRICOFLEX - for chemical products / for compressed air / polymer
Multi-use hose - TECHNOBEL® - TRICOFLEX - for chemical products / for compressed air / polymer - image - 2
Multi-use hose - TECHNOBEL® - TRICOFLEX - for chemical products / for compressed air / polymer - image - 3
Add to favorites
Compare this product


Characteristics

Use
for chemical products, for compressed air
Material
polymer, with polyester reinforcement
Applications
transfer, for chemical applications, low-pressure, agricultural, multi-use, for industrial applications
Other characteristics
chemical-resistant, high-resistance, fabric-braided, multilayer, impact-resistant
Inner diameter

Max.: 50 mm
(1.969 in)

Min.: 6 mm
(0.236 in)

Outer diameter

Max.: 64 mm
(2.52 in)

Min.: 11 mm
(0.433 in)

Pressure

30 bar, 40 bar, 55 bar, 60 bar
(435.113 psi, 580.151 psi, 797.708 psi, 870.226 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -15 °C
(5 °F)

Delivered length

25 m, 50 m
(82'00" , 164'00" )

Description

Flexible, resistant, low pressure multipurpose hose. Four layer thermoplastic design with polyester fibre textile. Braided reinforcement and Thermopolymer lining. Applications Compressed air for arduous industrial uses Transfer of certain chemical products (please consult us) Agro-chemical industry Sectors of activity Industry in general Advantages TECHNOBEL® is a high resistant flexible hose with a polyester inner wall. This inner wall provide the TECHNOBEL® hose with resistance to a range of chemicals as a complement to the TRICOCLAIR® hose. Thanks to its constituent materials and the quality of its reinforcement, TECHNOBEL® hose offers minimal distortion under pressure with very good ageing resistance capabilities, as well as good resistance to mechanical strains (impacts, flattening, pressure cycles). Accords Quick connectors, barbed or serrated connectors. Band, worm drive, screw or ‘O’ type clamps. Cap connectors. Swaged fittings can be used if they do not damage the hose (particular care must be taken to avoid damaging the thermoplastic lining. Chemical resistance See industrial catalogue, table pages 106 to 109 column A for outer layer, col. D for inner layer. Markings TECHNOBEL ø inn x ø out [WP/BP] BAR [Trimestre]Q/[Year] [Batch number]
