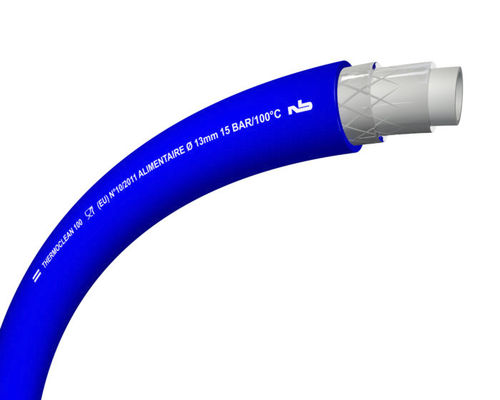

Microbe-resistant hose THERMOCLEAN® 100
for waterwith polyester reinforcementPVC

Microbe-resistant hose - THERMOCLEAN® 100 - TRICOFLEX - for water / with polyester reinforcement / PVC
Microbe-resistant hose - THERMOCLEAN® 100 - TRICOFLEX - for water / with polyester reinforcement / PVC
Microbe-resistant hose - THERMOCLEAN® 100 - TRICOFLEX - for water / with polyester reinforcement / PVC - image - 2
Add to favorites
Compare this product


Characteristics

Use
for water
Material
with polyester reinforcement, PVC
Applications
high-temperature, cleaning, food-grade
Other characteristics
chemical-resistant, microbe-resistant, high-resistance, multilayer
Inner diameter

13 mm, 16 mm, 19 mm, 25 mm
(0.512 in, 0.63 in, 0.748 in, 0.984 in)

Outer diameter

22 mm, 25 mm, 28 mm, 34 mm
(0.866 in, 0.984 in, 1.102 in, 1.339 in)

Pressure

Max.: 30 bar
(435.113 psi)

Min.: 13 bar
(188.549 psi)

Temperature

Max.: 100 °C
(212 °F)

Min.: -15 °C
(5 °F)

Delivered length

20 m, 40 m
(65'07" , 131'02" )

Description

TUBE FOR WASHING UP TO 100°C CONTINUOUSLY. Five layer design based on high thermal resistance food-grade materials and high adherence system between the inner tube and the outer layers. Resists grease and conventional detergent and disinfectant solutions. With an isolating thermal lining the risk of being scolded is reduced. APPLICATIONS Industrial cleaning Carrying foodstuffs SECTORS OF ACTIVITY Food Processing Dairy industry Shopkeepers, Craftsmen Slaughterhouses Industrial uses ADVANTAGES THERMOCLEAN® 100 ANTIMICROBIAL is more flexible and more resistant at high temperature. It is a safety tube: it stands thermal shocks, hammering, cyclic pressure and deformation particularly well up to 100°C continuously and even up to 120°C intermittently as a recyclable and non-staining material that is resistant to several agri-food industry cleaning solutions, it is the new standard for professional cleaning. The THERMOCLEAN® 100 ANTIMICROBIAL keeps its performance at high temperatures and prevents bacteria from developing. FITTINGS THERMOCLEAN® 100 ANTIMICROBIAL can be equipped with all types of connectors assembled with clamps. Caution: please make sure that the following precautions are followed: The connectors should be safe to handle; the tail should have a length that is at least twice that of the inside diameter. In the case of clamp fixation, it is recommended that two clamps be used and that they be retightened after first use. Crimping is the most adequate solution (please consult us). CHEMICAL RESISTANCE See industry catalog, table pages 106 to 109 column B. MARKINGS = THERMOCLEAN® 100 ANTIMICROBIAL (EU) N°10/2011 ALIMENTAIRE ø inn [WP] bar / 100°C [Batch number]
