Washer hose SUPER THERMOCLEAN® 40
for waterwith polyester reinforcementpolypropylene

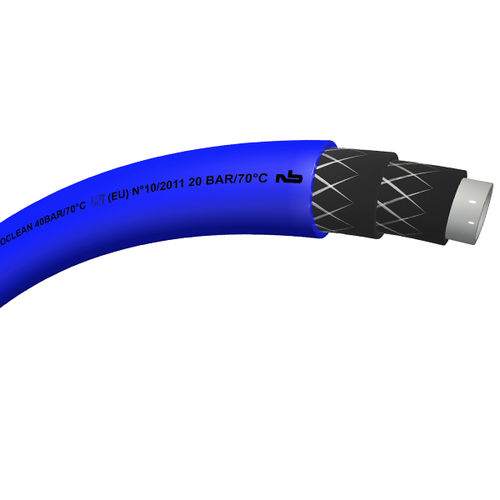

Washer hose - SUPER THERMOCLEAN® 40 - TRICOFLEX - for water / with polyester reinforcement / polypropylene
Washer hose - SUPER THERMOCLEAN® 40 - TRICOFLEX - for water / with polyester reinforcement / polypropylene
Washer hose - SUPER THERMOCLEAN® 40 - TRICOFLEX - for water / with polyester reinforcement / polypropylene - image - 2
Washer hose - SUPER THERMOCLEAN® 40 - TRICOFLEX - for water / with polyester reinforcement / polypropylene - image - 3
Add to favorites
Compare this product


Characteristics

Use
for water
Material
with polyester reinforcement, polypropylene
Applications
cleaning, medium-pressure, for industrial applications, washer
Other characteristics
multilayer
Inner diameter

12 mm
(0.472 in)

Outer diameter

22 mm
(0.866 in)

Pressure

40 bar
(580.151 psi)

Temperature

Max.: 70 °C
(158 °F)

Min.: -10 °C
(14 °F)

Delivered length

25 m, 50 m, 100 m
(82'00" , 164'00" , 328'01" )

Description

Average pressure industrial washing hose (40 bar at 70°C). Six-layer design with double polyester fibre reinforcing. Applications Industrial cleaning Sectors of activity Dairy industry Communities Shopkeepers, Craftsmen Slaughterhouses Industrial uses Advantages Super material properties of THERMOCLEAN® 40 make it a high-performance, safe and reliable hose capable of meeting severe conditions: Exceptional temperature performance (up to 70°C under 40 bar continuously, peaks possible up to 80°C); six highly flexible layers provide excellent handling; non-staining blue outer surface is resistant to oily products and detergents; excellent kinking resistance. Accords Barbed connectors with ‘O’ type clips (retighten the clips after first high temperature use). Crimping is possible under certain conditions (please consult us). Chemical resistance See industrial catalogue, table pages 106 to 109 column B. Markings SUPER Thermoclean® 40 BAR / 70°C (EU) N° 10/2011 [year of fabrication] [Batch number]
