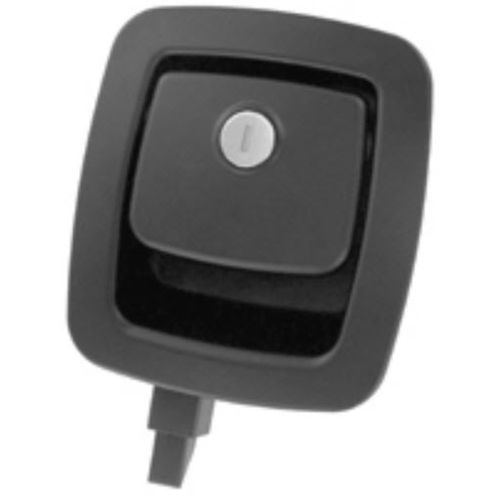

Lock latch 060-0460

camsliding boltsteel

This door lock was specifically designed for baggage and compartment doors for recreational vehicles including motor homes and travel trailers. It features a modern styled paddle and is available with multi-point functionality or as a single point. Features/Benefits Offers lower operating efforts and a more forgiving assembly Ample finger clearance Paddle can be locked before the door is shut (slam action) Updated styling Improved plunger design Increased mechanical advantage to allow for lower operating efforts Available in single or three point actuation for latching versatility Available Locking or non-locking Keyed alike Wide variety of mounting bracket options available for various applications Lock can be keyed to match other TriMark door products with KeyOne Plus for a single-key system, keyed alike or provided non-locking Multi-point actuation or single-point Zinc or plastic plunger Finish Paddle and housing: Low gloss black powder coat Steel components: Zinc coat with clear chromate Material Housing and paddle: Die cast zinc Pivot plate, axles, pivot arm: Steel Plunger bolt: Plastic or die cast zinc Installation Mounts with (4) #8-32 thread forming fasteners (not supplied) Supplied with gasket already applied under recess in housing flange for simple, clean installation U.S. Patent No. 6,547,290
